Brand Name : XINGEBIN
Model Number : R-DPCS
Certification : ISO9001
Place of Origin : CHINA
MOQ : 2 ton
Price : USD500-600/TON
Payment Terms : L/C, T/T
Supply Ability : 10TON/DAY
Delivery Time : 5-8 DAYS
Packaging Details : PALLET
materil : PVC powder coated
uses : anti-climb
blade size : 65mm
Surface treatment : zinc coated
Length : 5m
size : CBT-65
PVC powder coated CBT-65 anti-climb concertina razor blade barbed tape steel wire introduction
CBT-65 concertina razor blade barbed tape steel wire often referred to as barbed tape, is a modern version and great alternative to traditional barbed wire, which is designed to prevent unauthorized intrusion along perimeter barriers. It is fabricated from high tensile wire onto which a multitude of razor-sharp barbs are formed at close and uniform intervals. Its sharp barbs act as both visual and psychological deterrent, making it ideal for industries such as commercial, industrial, residential and governmental areas.

PVC powder coated CBT-65 anti-climb concertina razor blade barbed tape steel wire feature
The CBT-65 concertina razor blade barbed tape steel wire feature
| Feature | •Modern and economical way as perimeter barriers against illegal invasion to restricted areas. •Attractive design in harmony with natural beauty. •Fabricated from hot-dipped galvanized steel or stainless steel, high resistance to corrosion. •Sharp blade with multiple profiles has piercing and gripping action, which performs psychological deterrent to intruders. •Abrasion resistance for long service life. •Enclosed high tensile core wire makes it difficult to cut with standard tools. •Provides much better security compared with traditional barbed wire. •Easy installation and low maintenance. |

PVC powder coated CBT-65 anti-climb concertina razor blade barbed tape steel wire technical sheet
| Blade spec | Blade profile | Blade thickness mm | Core wire diameter mm | Blade length mm | Blade width mm | Blade space mm |
| 10
|
| 0.5±0.05
| 2.5±0.1
| 10±1
| 13±1
| 26±1
|
| 12
|
| 0.5±0.05
| 2.5±0.1
| 12±1
| 15±1
| 26±1
|
| 18
|
| 0.5±0.05
| 2.5±0.1
| 18±1
| 15±1
| 33±1
|
| 22
|
| 0.5±0.05
| 2.5±0.1
| 22±1
| 15±1
| 34±1
|
| 28
|
| 0.5±0.05
| 2.5
| 28
| 15
| 45±1
|
| 30
|
| 0.5±0.05
| 2.5
| 30
| 18
| 45±1
|
| 60
|
| 0.6±0.05
| 2.5±0.1
| 60±2
| 32±1
| 100±2
|
| 65
|
| 0.6±0.05
| 2.5±0.1
| 65±2
| 21±1
| 100±2
|


|
|

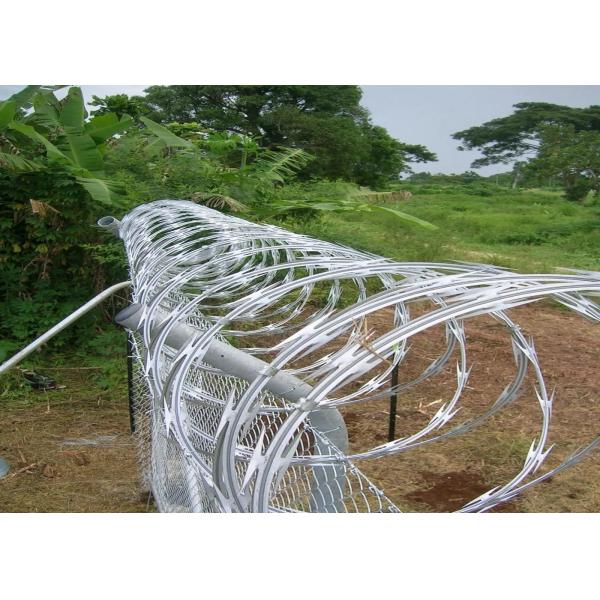

PVC Powder Coated CBT 65 Razor Wire Anti Climb Concertina Barbed Wire Coils Images |
